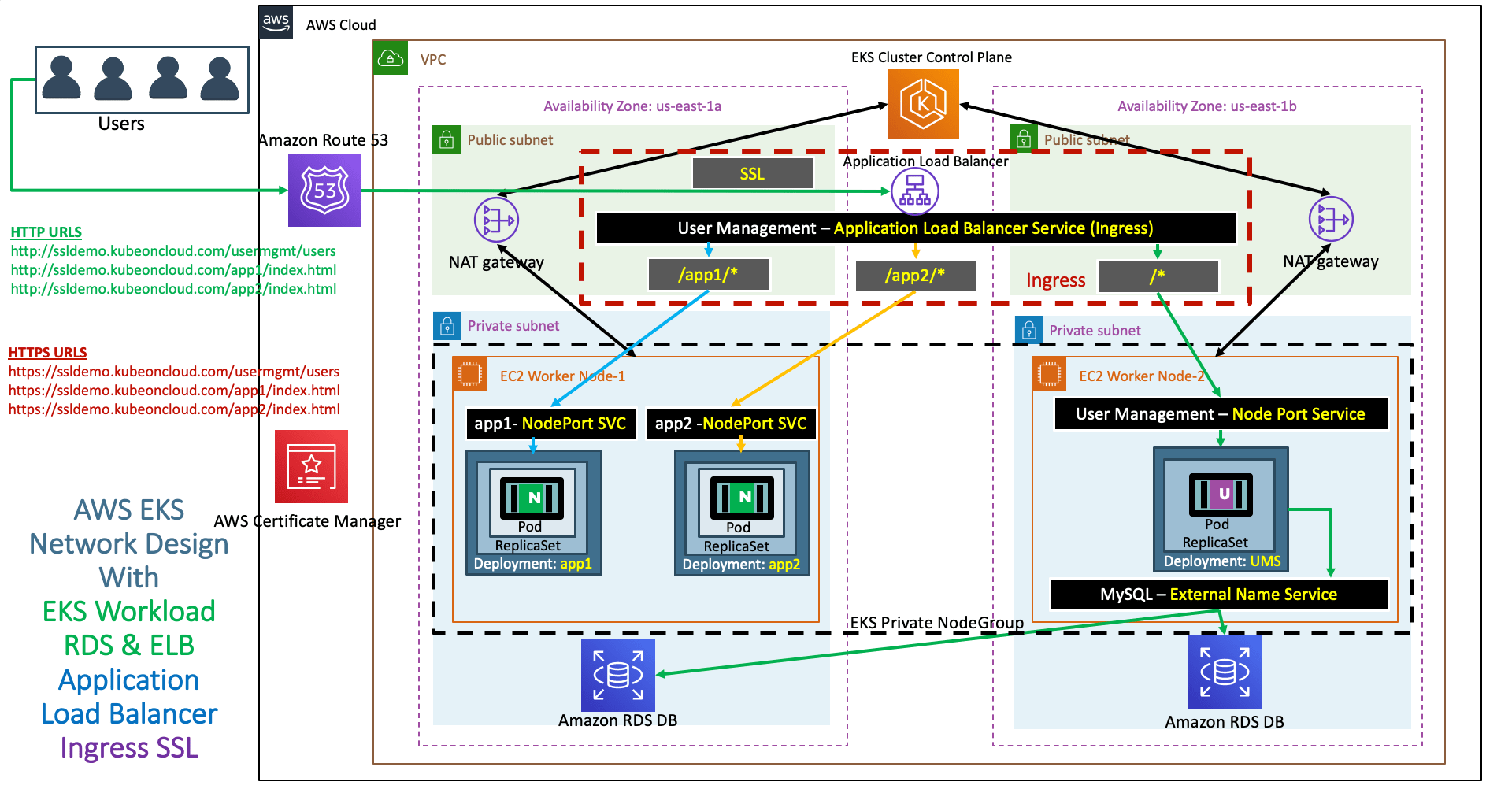

AWS ALB Ingress Service - Enable SSL

Step-01: Introduction


Kubernetes Manifests

#01-MySQL-externalName-Service.yml
apiVersion: v1
kind: Service
metadata:
  name: mysql
spec:
  type: ExternalName
  externalName: usermgmtdb.cxojydmxwly6.us-east-1.rds.amazonaws.com
#02-UserManagementMicroservice-Deployment-Service.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: usermgmt-microservice
  labels:
    app: usermgmt-restapp
spec:
  replicas: 1
  selector:
    matchLabels:
      app: usermgmt-restapp
  template:
    metadata:
      labels:
        app: usermgmt-restapp
    spec:
      initContainers:
        - name: init-db
          image: busybox:1.31
          command: ['sh', '-c', 'echo -e "Checking for the availability of MySQL Server deployment"; while ! nc -z mysql 3306; do sleep 1; printf "-"; done; echo -e "  >> MySQL DB Server has started";']
      containers:
        - name: usermgmt-restapp
          image: stacksimplify/kube-usermanagement-microservice:1.0.0
          ports:
            - containerPort: 8095
          env:
            - name: DB_HOSTNAME
              value: "mysql"
            - name: DB_PORT
              value: "3306"
            - name: DB_NAME
              value: "usermgmt"
            - name: DB_USERNAME
              value: "dbadmin"        # RDS DB Username is dbadmin
            - name: DB_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: mysql-db-password
                  key: db-password
          livenessProbe:
            exec:
              command:
                - /bin/sh
                - -c
                - nc -z localhost 8095
            initialDelaySeconds: 60
            periodSeconds: 10
          readinessProbe:
            httpGet:
              path: /usermgmt/health-status
              port: 8095
            initialDelaySeconds: 60
            periodSeconds: 10
#03-Kubernetes-Secrets.yml
apiVersion: v1
kind: Secret
metadata:
  name: mysql-db-password
type: Opaque
data:
  db-password: ZGJwYXNzd29yZDEx
#04-UserManagement-NodePort-Service.yml
apiVersion: v1
kind: Service
metadata:
  name: usermgmt-restapp-nodeport-service
  labels:
    app: usermgmt-restapp
  annotations:
#Important Note:  Need to add health check path annotations in service level if we are planning to use multiple targets in a load balancer
    alb.ingress.kubernetes.io/healthcheck-path: /usermgmt/health-status
spec:
  type: NodePort
  selector:
    app: usermgmt-restapp
  ports:
    - port: 8095
      targetPort: 8095
#05-Nginx-App1-Deployment-and-NodePortService.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app1-nginx-deployment
  labels:
    app: app1-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: app1-nginx
  template:
    metadata:
      labels:
        app: app1-nginx
    spec:
      containers:
        - name: app1-nginx
          image: stacksimplify/kube-nginxapp1:1.0.0
          ports:
            - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: app1-nginx-nodeport-service
  labels:
    app: app1-nginx
  annotations:
#Important Note:  Need to add health check path annotations in service level if we are planning to use multiple targets in a load balancer
    alb.ingress.kubernetes.io/healthcheck-path: /app1/index.html
spec:
  type: NodePort
  selector:
    app: app1-nginx
  ports:
    - port: 80
      targetPort: 80
#06-Nginx-App2-Deployment-and-NodePortService.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app2-nginx-deployment
  labels:
    app: app2-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: app2-nginx
  template:
    metadata:
      labels:
        app: app2-nginx
    spec:
      containers:
        - name: app2-nginx
          image: stacksimplify/kube-nginxapp2:1.0.0
          ports:
            - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: app2-nginx-nodeport-service
  labels:
    app: app2-nginx
  annotations:
#Important Note:  Need to add health check path annotations in service level if we are planning to use multiple targets in a load balancer
    alb.ingress.kubernetes.io/healthcheck-path: /app2/index.html
spec:
  type: NodePort
  selector:
    app: app2-nginx
  ports:
    - port: 80
      targetPort: 80
#07-ALB-Ingress-SSL.yml
# Annotations Reference:  https://kubernetes-sigs.github.io/aws-alb-ingress-controller/guide/ingress/annotation/
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: ingress-usermgmt-restapp-service
  labels:
    app: usermgmt-restapp
  annotations:
    # Ingress Core Settings
    kubernetes.io/ingress.class: "alb"
    alb.ingress.kubernetes.io/scheme: internet-facing
    # Health Check Settings
    alb.ingress.kubernetes.io/healthcheck-protocol: HTTP
    alb.ingress.kubernetes.io/healthcheck-port: traffic-port
    #Important Note:  Need to add health check path annotations in service level if we are planning to use multiple targets in a load balancer
    #alb.ingress.kubernetes.io/healthcheck-path: /usermgmt/health-status
    alb.ingress.kubernetes.io/healthcheck-interval-seconds: '15'
    alb.ingress.kubernetes.io/healthcheck-timeout-seconds: '5'
    alb.ingress.kubernetes.io/success-codes: '200'
    alb.ingress.kubernetes.io/healthy-threshold-count: '2'
    alb.ingress.kubernetes.io/unhealthy-threshold-count: '2'
    ## SSL Settings
    alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
    alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:us-east-1:180789647333:certificate/9f042b5d-86fd-4fad-96d0-c81c5abc71e1
    #alb.ingress.kubernetes.io/ssl-policy: ELBSecurityPolicy-TLS-1-1-2017-01 #Optional (Picks default if not used)
spec:
  rules:
    #- host: ssldemo.kubeoncloud.com    # SSL Setting (Optional only if we are not using certificate-arn annotation)
    - http:
        paths:
          - path: /app1/*
            backend:
              serviceName: app1-nginx-nodeport-service
              servicePort: 80
          - path: /app2/*
            backend:
              serviceName: app2-nginx-nodeport-service
              servicePort: 80
          - path: /*
            backend:
              serviceName: usermgmt-restapp-nodeport-service
              servicePort: 8095
# Important Note-1: In path based routing order is very important, if we are going to use  "/*", try to use it at the end of all rules.

Step-02: Pre-requisite - Register a Domain in Route53 (if not exists)

  • Goto Services -> Route53 -> Registered Domains
  • Click on Register Domain
  • Provide desired domain: somedomain.com and click on check (In my case its going to be kubeoncloud.com)
  • Click on Add to cart and click on Continue
  • Provide your Contact Details and click on Continue
  • Enable Automatic Renewal
  • Accept Terms and Conditions
  • Click on Complete Order

Step-03: Create a SSL Certificate in Certificate Manager

  • Pre-requisite: You should have a registered domain in Route53
  • Go to Services -> Certificate Manager -> Create a Certificate
  • Click on Request a Certificate
  • Choose the type of certificate for ACM to provide: Request a public certificate
  • Add domain names: *.yourdomain.com (in my case it is going to be *.kubeoncloud.com)
  • Select a Validation Method: DNS Validation
  • Click on Confirm & Request
  • Validation
  • Click on Create record in Route 53
  • Wait for 5 to 10 minutes and check the Validation Status

Best Selling AWS EKS Kubernetes Course on Udemy

Start Learning Now!

  • 07-ALB-Ingress-SSL.yml
    # SSL Setting - 1
        ## SSL Settings
        alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
        alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:us-east-1:411686525067:certificate/8adf7812-a1af-4eae-af1b-ea425a238a67
        #alb.ingress.kubernetes.io/ssl-policy: ELBSecurityPolicy-TLS-1-1-2017-01 #Optional (Picks default if not used)
    # SSL Setting - 2
    spec:
      rules:
        #- host: kubedemo.stacksimplify.com    # SSL Setting (Optional only if we are not using certificate-arn annotation)


Step-05: Deploy all manifests and test

  • Deploy
    kubectl apply -f kube-manifests/

  • Verify
    • Load Balancer - Listeneres (Verify both 80 & 443)
    • Load Balancer - Rules (Verify both 80 & 443 listeners)
    • Target Groups - Group Details (Verify Health check path)
    • Target Groups - Targets (Verify all 3 targets are healthy)
    • Verify ingress controller from kubectl
      kubectl get ingress


Step-06: Add DNS in Route53

  • Go to Services -> Route 53
  • Go to Hosted Zones
  • Click on yourdomain.com (in my case stacksimplify.com)
  • Create a Record Set
  • Name: ssldemo.kubeoncloud.com
  • Alias: yes
  • Alias Target: Copy our ALB DNS Name here (Sample: 55dc0e80-default-ingressus-ea9e-551932098.us-east-1.elb.amazonaws.com)
  • Click on Create

Step-07: Access Application using newly registered DNS Name

  • Access Application
  • Important Note: Instead of kubeoncloud.com you need to replace with your registered Route53 domain (Refer pre-requisite Step-02)
    # HTTP URLs
    http://ssldemo.kubeoncloud.com/app1/index.html
    http://ssldemo.kubeoncloud.com/app2/index.html
    http://ssldemo.kubeoncloud.com/usermgmt/health-status

    # HTTPS URLs
    https://ssldemo.kubeoncloud.com/app1/index.html
    https://ssldemo.kubeoncloud.com/app2/index.html
    https://ssldemo.kubeoncloud.com/usermgmt/health-status
