Microservices Distributed Tracing with X-Ray on AWS EKS ¶

Step-01: Introduction ¶

Introduction to AWS XRay & k8s DaemonSets ¶

Understand about AWS X-Ray Services
Understand Kubernetes DaemonSets

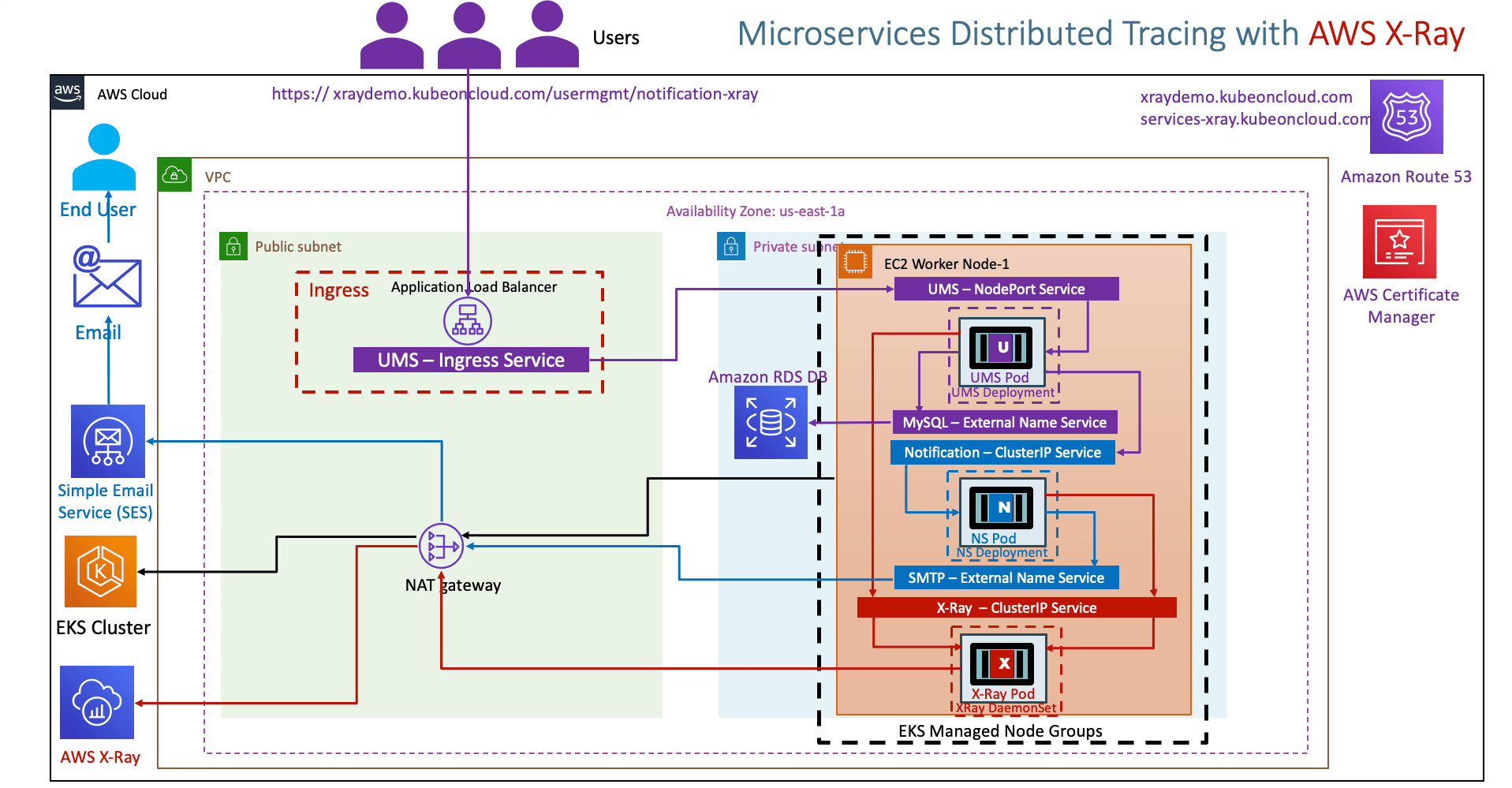

Understand the AWS X-Ray and Microservices network design on EKS Cluster
Understand about Service Map, Traces and Segments in AWS X-Ray

Usecase Description ¶

User Management getNotificationAppInfo will call Notification service notification-xray which will evetually send traces to AWS X-Ray service
We are going to depict one Microservice calling other Microservice

List of Docker Images used in this section ¶

Application Name	Docker Image Name
User Management Microservice	stacksimplify/kube-usermanagement-microservice:3.0.0-AWS-XRay-MySQLDB
Notifications Microservice V1	stacksimplify/kube-notifications-microservice:3.0.0-AWS-XRay

Step-02: Pre-requisite: AWS RDS Database, ALB Ingress Controller & External DNS ¶

AWS RDS Database ¶

We have created AWS RDS Database as part of section 06-EKS-Storage-with-RDS-Database
We even created a externalName service: 01-MySQL-externalName-Service.yml in our Kubernetes manifests to point to that RDS Database.

ALB Ingress Controller & External DNS ¶

We are going to deploy a application which will also have a ALB Ingress Service and also will register its DNS name in Route53 using External DNS
Which means we should have both related pods running in our EKS cluster.
We have installed ALB Ingress Controller as part of section 08-01-ALB-Ingress-Install

We have installed External DNS as part of section 08-06-01-Deploy-ExternalDNS-on-EKS

# Verify alb-ingress-controller pod running in namespace kube-system
kubectl get pods -n kube-system

# Verify external-dns pod running in default namespace
kubectl get pods

Step-03: Create IAM permissions for AWS X-Ray daemon ¶

# Template
eksctl create iamserviceaccount \
    --name service_account_name \
    --namespace service_account_namespace \
    --cluster cluster_name \
    --attach-policy-arn arn:aws:iam::aws:policy/AWSXRayDaemonWriteAccess \
    --approve \
    --override-existing-serviceaccounts

# Replace Name, Namespace, Cluster Info (if any changes)
eksctl create iamserviceaccount \
    --name xray-daemon \
    --namespace default \
    --cluster eksdemo1 \
    --attach-policy-arn arn:aws:iam::aws:policy/AWSXRayDaemonWriteAccess \
    --approve \
    --override-existing-serviceaccounts

Verify Service Account and AWS IAM Role ¶

# List k8s Service Accounts
kubectl get sa

# Describe Service Account (Verify IAM Role annotated)
kubectl describe sa xray-daemon

# List IAM Roles on eksdemo1 Cluster created with eksctl
eksctl  get iamserviceaccount --cluster eksdemo1

AWS EKS - Elastic Kubernetes Service - Masterclass ¶

Step-04: Update IAM Role ARN in xray-k8s-daemonset.yml ¶

Get AWS IAM Role ARN for xray-daemon ¶

# Get AWS IAM Role ARN
eksctl  get iamserviceaccount xray-daemon --cluster eksdemo1

Update xray-k8s-daemonset.yml ¶

File Name: kube-manifests/01-XRay-DaemonSet/xray-k8s-daemonset.yml

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app: xray-daemon
  name: xray-daemon
  namespace: default
  # Update IAM Role ARN created for X-Ray access
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::180789647333:role/eksctl-eksdemo1-addon-iamserviceaccount-defa-Role1-20F5AWU2J61F

Deploy X-Ray DaemonSet on our EKS Cluster ¶

# Deploy
kubectl apply -f kube-manifests/01-XRay-DaemonSet/xray-k8s-daemonset.yml

# Verify Deployment, Service & Pod
kubectl get deploy,svc,pod

# Verify X-Ray Logs
kubectl logs -f <X-Ray Pod Name>
kubectl logs -f xray-daemon-phszp

# List & Describe DaemonSet
kubectl get daemonset
kubectl describe daemonset xray-daemon

Kubernetes Manifests ¶

01

#01-MySQL-externalName-Service.yml
apiVersion: v1
kind: Service
metadata:
  name: mysql
spec:
  type: ExternalName
  externalName: usermgmtdb.cxojydmxwly6.us-east-1.rds.amazonaws.com

02

#02-UserManagementMicroservice-Deployment.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: usermgmt-microservice
  labels:
    app: usermgmt-restapp
spec:
  replicas: 1
  selector:
    matchLabels:
      app: usermgmt-restapp
  template:
    metadata:
      labels:
        app: usermgmt-restapp
    spec:
      initContainers:
        - name: init-db
          image: busybox:1.31
          command: ['sh', '-c', 'echo -e "Checking for the availability of MySQL Server deployment"; while ! nc -z mysql 3306; do sleep 1; printf "-"; done; echo -e "  >> MySQL DB Server has started";']
      containers:
        - name: usermgmt-restapp
          image: stacksimplify/kube-usermanagement-microservice:3.0.0-AWS-XRay-MySQLDB
          ports:
            - containerPort: 8095
          imagePullPolicy: Always
          env:
            - name: DB_HOSTNAME
              value: "mysql"
            - name: DB_PORT
              value: "3306"
            - name: DB_NAME
              value: "usermgmt"
            - name: DB_USERNAME
              value: "dbadmin"
            - name: DB_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: mysql-db-password
                  key: db-password
            - name: NOTIFICATION_SERVICE_HOST
              value: "notification-clusterip-service"
            - name: NOTIFICATION_SERVICE_PORT
              value: "8096"
            - name: AWS_XRAY_TRACING_NAME
              value: "User-Management-Microservice"
            - name: AWS_XRAY_DAEMON_ADDRESS
              value: "xray-service.default:2000"
            - name: AWS_XRAY_CONTEXT_MISSING
              value: "LOG_ERROR"  # Log an error and continue, Ideally RUNTIME_ERROR – Throw a runtime exception which is default option if not configured
          livenessProbe:
            exec:
              command:
                - /bin/sh
                - -c
                - nc -z localhost 8095
            initialDelaySeconds: 60
            periodSeconds: 10
          readinessProbe:
            httpGet:
              path: /usermgmt/health-status
              port: 8095
            initialDelaySeconds: 60
            periodSeconds: 10
---
# Kubernetes Secrets
apiVersion: v1
kind: Secret
metadata:
  name: mysql-db-password
#type: Opaque means that from kubernetes's point of view the contents of this Secret is unstructured, it can contain arbitrary key-value pairs. In contrast, there is the Secret storing ServiceAccount credentials, or the ones used as ImagePullSecret . These have a constrained contents.
type: Opaque
data:
  # Output of echo -n 'dbpassword11' | base64
  db-password: ZGJwYXNzd29yZDEx

03

#03-UserManagement-NodePort-Service.yml
apiVersion: v1
kind: Service
metadata:
  name: usermgmt-restapp-nodeport-service
  labels:
    app: usermgmt-restapp
  annotations:
  #Important Note:  Need to add health check path annotations in service level if we are planning to use multiple targets in a load balancer
    alb.ingress.kubernetes.io/healthcheck-path: /usermgmt/health-status
spec:
  type: NodePort
  selector:
    app: usermgmt-restapp
  ports:
  - port: 8095
    targetPort: 8095

04

#04-NotificationMicroservice-Deployment.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: v1-notification-microservice
  labels:
    app: notification-restapp
    track: stable
spec:
  replicas: 1
  selector:
    matchLabels:
      app: notification-restapp
  template:
    metadata:
      labels:
        app: notification-restapp
        track: stable
    spec:
      containers:
        - name: notification-service
          image: stacksimplify/kube-notifications-microservice:3.0.0-AWS-XRay
          ports:
            - containerPort: 8096
          imagePullPolicy: Always
          env:
            - name: AWS_MAIL_SERVER_HOST
              value: "smtp-service"
            - name: AWS_MAIL_SERVER_USERNAME
              value: "AKIASUF7HC7SQJ6BCLVS"
            - name: AWS_MAIL_SERVER_PASSWORD
              value: "BARcmLiC68wgmhTy/cQvz/E8vFzeizGqdeASNtCs6+Nv"
            - name: AWS_MAIL_SERVER_FROM_ADDRESS
              value: "stacksimplify@gmail.com"
            - name: AWS_XRAY_TRACING_NAME
              value: "V1-Notification-Microservice"
            - name: AWS_XRAY_DAEMON_ADDRESS
              value: "xray-service.default:2000"
            - name: AWS_XRAY_CONTEXT_MISSING
              value: "LOG_ERROR"  # Log an error and continue, Ideally RUNTIME_ERROR – Throw a runtime exception which is default option if not configured

05

#05-NotificationMicroservice-SMTP-externalName-Service.yml
apiVersion: v1
kind: Service
metadata:
  name: smtp-service
spec:
  type: ExternalName
  externalName: email-smtp.us-east-1.amazonaws.com

06

#06-NotificationMicroservice-ClusterIP-Service.yml
apiVersion: v1
kind: Service
metadata:
  name: notification-clusterip-service
  labels:
    app: notification-restapp
spec:
  type: ClusterIP
  selector:
    app: notification-restapp
  ports:
  - port: 8096
    targetPort: 8096

07

#07-ALB-Ingress-SSL-Redirect-ExternalDNS.yml
# Annotations Reference:  https://kubernetes-sigs.github.io/aws-alb-ingress-controller/guide/ingress/annotation/
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: eks-microservices-demo
  labels:
    app: usermgmt-restapp
  annotations:
    # Ingress Core Settings
    kubernetes.io/ingress.class: "alb"
    alb.ingress.kubernetes.io/scheme: internet-facing
    # Health Check Settings
    alb.ingress.kubernetes.io/healthcheck-protocol: HTTP
    alb.ingress.kubernetes.io/healthcheck-port: traffic-port
    alb.ingress.kubernetes.io/healthcheck-interval-seconds: '15'
    alb.ingress.kubernetes.io/healthcheck-timeout-seconds: '5'
    alb.ingress.kubernetes.io/success-codes: '200'
    alb.ingress.kubernetes.io/healthy-threshold-count: '2'
    alb.ingress.kubernetes.io/unhealthy-threshold-count: '2'
    ## SSL Settings
    alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
    alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:us-east-1:180789647333:certificate/9f042b5d-86fd-4fad-96d0-c81c5abc71e1
    #alb.ingress.kubernetes.io/ssl-policy: ELBSecurityPolicy-TLS-1-1-2017-01 #Optional (Picks default if not used)
    # SSL Redirect Setting
    alb.ingress.kubernetes.io/actions.ssl-redirect: '{"Type": "redirect", "RedirectConfig": { "Protocol": "HTTPS", "Port": "443", "StatusCode": "HTTP_301"}}'
    # External DNS - For creating a Record Set in Route53
    external-dns.alpha.kubernetes.io/hostname: services.kubeoncloud.com, ums.kubeoncloud.com
spec:
  rules:
    - http:
        paths:
          - path: /* # SSL Redirect Setting
            backend:
              serviceName: ssl-redirect
              servicePort: use-annotation
          - path: /*
            backend:
              serviceName: usermgmt-restapp-nodeport-service
              servicePort: 8095
# Important Note-1: In path based routing order is very important, if we are going to use  "/*", try to use it at the end of all rules.

Step-05: Review Microservices Application Deployment Manifests ¶

02-UserManagementMicroservice-Deployment.yml

# Change-1: Image Tag is 3.0.0-AWS-XRay-MySQLDB
      containers:
        - name: usermgmt-restapp
          image: stacksimplify/kube-usermanagement-microservice:3.0.0-AWS-XRay-MySQLDB

# Change-2: New Environment Variables related to AWS X-Ray
            - name: AWS_XRAY_TRACING_NAME
              value: "User-Management-Microservice"
            - name: AWS_XRAY_DAEMON_ADDRESS
              value: "xray-service.default:2000"
            - name: AWS_XRAY_CONTEXT_MISSING
              value: "LOG_ERROR"  # Log an error and continue, Ideally RUNTIME_ERROR – Throw a runtime exception which is default option if not configured

04-NotificationMicroservice-Deployment.yml

# Change-1: Image Tag is 3.0.0-AWS-XRay
    spec:
      containers:
        - name: notification-service
          image: stacksimplify/kube-notifications-microservice:3.0.0-AWS-XRay

# Change-2: New Environment Variables related to AWS X-Ray
            - name: AWS_XRAY_TRACING_NAME
              value: "V1-Notification-Microservice"
            - name: AWS_XRAY_DAEMON_ADDRESS
              value: "xray-service.default:2000"
            - name: AWS_XRAY_CONTEXT_MISSING
              value: "LOG_ERROR"  # Log an error and continue, Ideally RUNTIME_ERROR – Throw a runtime exception which is default option if not configured

Step-06: Review Ingress Manifest ¶

07-ALB-Ingress-SSL-Redirect-ExternalDNS.yml

# Change-1-For-You: Update with your SSL Cert ARN when using template
    alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:us-east-1:180789647333:certificate/9f042b5d-86fd-4fad-96d0-c81c5abc71e1

# Change-2-For-You: Update with your "yourdomainname.com"
    # External DNS - For creating a Record Set in Route53
    external-dns.alpha.kubernetes.io/hostname: services-xray.kubeoncloud.com, xraydemo.kubeoncloud.com

Step-07: Deploy Manifests ¶

# Deploy
kubectl apply -f kube-manifests/02-Applications

# Verify
kubectl get pods

Step-08: Test ¶

# Test
https://xraydemo.kubeoncloud.com/usermgmt/notification-xray
https://xraydemo.kubeoncloud.com/usermgmt/notification-xray

# Your Domain Name
https://<Replace-your-domain-name>/usermgmt/notification-xray

Step-09: Clean-Up ¶

We are going to delete applications created as part of this section
We are going to leave the xray daemon set running which we will leverage in our next section canary deployments in Kubernetes on EKS.
```
# Delete Apps
kubectl delete -f kube-manifests/02-Applications
```

References ¶

https://github.com/aws-samples/aws-xray-kubernetes/
https://github.com/aws-samples/aws-xray-kubernetes/blob/master/xray-daemon/xray-k8s-daemonset.yaml
https://aws.amazon.com/blogs/compute/application-tracing-on-kubernetes-with-aws-x-ray/
https://docs.aws.amazon.com/xray/latest/devguide/xray-sdk-java-configuration.html
https://docs.aws.amazon.com/xray/latest/devguide/xray-sdk-java-configuration.html#xray-sdk-java-configuration-plugins
https://docs.aws.amazon.com/xray/latest/devguide/xray-sdk-java-httpclients.html
https://docs.aws.amazon.com/xray/latest/devguide/xray-sdk-java-filters.html
https://docs.aws.amazon.com/xray/latest/devguide/xray-sdk-java-sqlclients.html
