Kubernetes ExternalDNS to create Record Sets in Azure DNS from AKS¶

Link to all the Kubernetes Manifests ¶

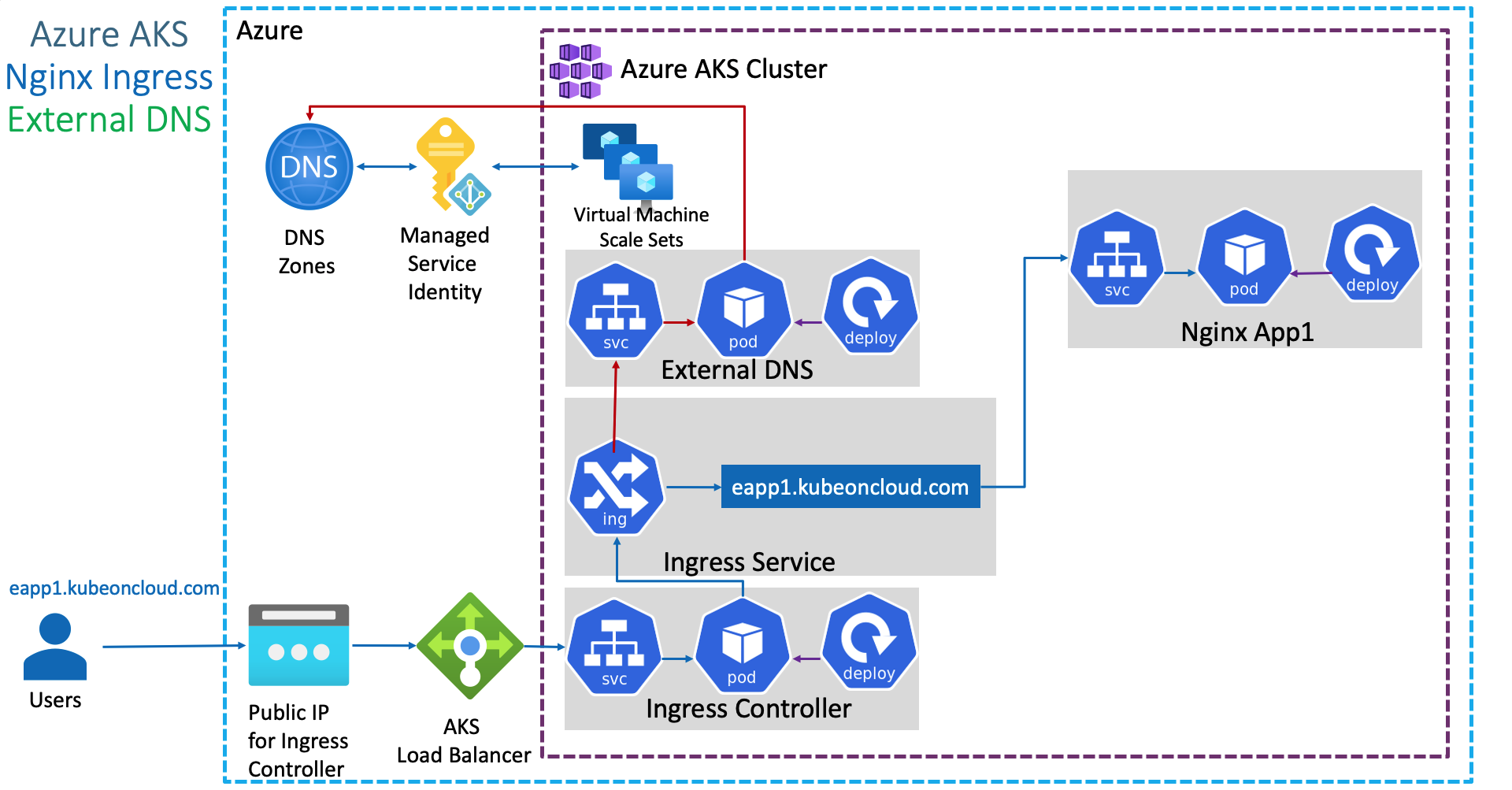

Step-01: Introduction¶

Create External DNS Manifest
Provide Access to DNZ Zones using Azure Managed Service Identity for External DNS pod to create Record Sets in Azure DNS Zones
Review Application & Ingress Manifests
Deploy and Test

Azure Kubernetes Service with Azure DevOps and Terraform¶

Step-02: Create External DNS Manifests¶

External-DNS needs permissions to Azure DNS to modify (Add, Update, Delete DNS Record Sets)
We can provide permissions to External-DNS pod in two ways in Azure
Using Azure Service Principal
Using Azure Managed Service Identity (MSI)
We are going to use MSI for providing necessary permissions here which is latest and greatest in Azure as on today.

Gather Information Required for azure.json file¶

# To get Azure Tenant ID
az account show --query "tenantId"

# To get Azure Subscription ID
az account show --query "id"

Create azure.json file¶

{
  "tenantId": "c81f465b-99f9-42d3-a169-8082d61c677a",
  "subscriptionId": "82808767-144c-4c66-a320-b30791668b0a",
  "resourceGroup": "dns-zones",
  "useManagedIdentityExtension": true,
  "userAssignedIdentityID": "404b0cc1-ba04-4933-bcea-7d002d184436"
}

Review external-dns.yml manifest¶

apiVersion: v1
kind: ServiceAccount
metadata:
  name: external-dns
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: external-dns
rules:
- apiGroups: [""]
  resources: ["services","endpoints","pods"]
  verbs: ["get","watch","list"]
- apiGroups: ["extensions","networking.k8s.io"]
  resources: ["ingresses"]
  verbs: ["get","watch","list"]
- apiGroups: [""]
  resources: ["nodes"]
  verbs: ["list"]
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: external-dns-viewer
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: external-dns
subjects:
- kind: ServiceAccount
  name: external-dns
  namespace: default
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: external-dns
spec:
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: external-dns
  template:
    metadata:
      labels:
        app: external-dns
    spec:
      serviceAccountName: external-dns
      containers:
      - name: external-dns
        image: registry.opensource.zalan.do/teapot/external-dns:latest
        args:
        - --source=service
        - --source=ingress
        #- --domain-filter=example.com # (optional) limit to only example.com domains; change to match the zone created above.
        - --provider=azure
        #- --azure-resource-group=externaldns # (optional) use the DNS zones from the specific resource group
        volumeMounts:
        - name: azure-config-file
          mountPath: /etc/kubernetes
          readOnly: true
      volumes:
      - name: azure-config-file
        secret:
          secretName: azure-config-file

Step-03: Create MSI - Managed Service Identity for External DNS to access Azure DNS Zones¶

Create Manged Service Identity (MSI)¶

Go to All Services -> Managed Identities -> Add
Resource Name: aksdemo1-externaldns-access-to-dnszones
Subscription: Pay-as-you-go
Resource group: aks-rg1
Location: Central US
Click on Create

Add Azure Role Assignment in MSI¶

Opem MSI -> aksdemo1-externaldns-access-to-dnszones
Click on Azure Role Assignments -> Add role assignment
Scope: Resource group
Subscription: Pay-as-you-go
Resource group: dns-zones
Role: Contributor

Make a note of Client Id and update in azure.json¶

Go to Overview -> Make a note of **Client ID"

Update in azure.json value for userAssignedIdentityID

  "userAssignedIdentityID": "de836e14-b1ba-467b-aec2-93f31c027ab7"

Step-04: Associate MSI in AKS Cluster VMSS¶

Go to All Services -> Virtual Machine Scale Sets (VMSS) -> Open aksdemo1 related VMSS (aks-agentpool-27193923-vmss)
Go to Settings -> Identity -> User assigned -> Add -> aksdemo1-externaldns-access-to-dnszones

Step-05: Create Kubernetes Secret and Deploy ExternalDNS¶

# Create Secret
cd kube-manifests/01-ExteranlDNS
kubectl create secret generic azure-config-file --from-file=azure.json

# List Secrets
kubectl get secrets

# Deploy ExternalDNS
cd kube-manifests/01-ExteranlDNS
kubectl apply -f external-dns.yml

# Verify ExternalDNS Logs
kubectl logs -f $(kubectl get po | egrep -o 'external-dns[A-Za-z0-9-]+')

# Error Type: 400
time="2020-08-24T11:25:04Z" level=error msg="azure.BearerAuthorizer#WithAuthorization: Failed to refresh the Token for request to https://management.azure.com/subscriptions/82808767-144c-4c66-a320-b30791668b0a/resourceGroups/dns-zones/providers/Microsoft.Network/dnsZones?api-version=2018-05-01: StatusCode=400 -- Original Error: adal: Refresh request failed. Status Code = '400'. Response body: {\"error\":\"invalid_request\",\"error_description\":\"Identity not found\"}"

# Error Type: 403
Notes: Error 403 will come when our Managed Service Identity dont have access to respective destination resource

# When all good, we should get log as below
time="2020-08-24T11:27:59Z" level=info msg="Resolving to user assigned identity, client id is 404b0cc1-ba04-4933-bcea-7d002d184436."

Step-06: Deploy Application and Test¶

When dns record set got created in DNS Zone, the log in external-dns should look as below.

Deploy Application¶

# Deploy Application
kubectl apply -f kube-manifests/02-NginxApp1

# Verify Pods and Services
kubectl get po,svc

# Verify Ingress
kubectl get ingress

Verify logs in External DNS Pod¶

Wait for 3 to 5 minutes for Record Set update in DNZ Zones

# Verify ExternalDNS Logs
kubectl logs -f $(kubectl get po | egrep -o 'external-dns[A-Za-z0-9-]+')

External DNS Pod Logs

time="2020-08-24T11:30:54Z" level=info msg="Updating A record named 'eapp1' to '20.37.141.33' for Azure DNS zone 'kubeoncloud.com'."
time="2020-08-24T11:30:55Z" level=info msg="Updating TXT record named 'eapp1' to '\"heritage=external-dns,external-dns/owner=default,external-dns/resource=ingress/default/nginxapp1-ingress-service\"' for Azure DNS zone 'kubeoncloud.com'."

Verify Record Set in DNZ Zones -> kubeoncloud.com¶

Go to All Services -> DNS Zones -> kubeoncloud.com

Verify if we have eapp1.kubeoncloud.com created

# Template Command
az network dns record-set a list -g <Resource-Group-dnz-zones> -z <yourdomain.com>

# Replace DNS Zones Resource Group and yourdomain
az network dns record-set a list -g dns-zones -z kubeoncloud.com

Perform nslookup test

# nslookup Test
Kalyans-MacBook-Pro:01-ExternalDNS kdaida$ nslookup eapp1.kubeoncloud.com
Server:     192.168.0.1
Address:    192.168.0.1#53

Non-authoritative answer:
Name:   eapp1.kubeoncloud.com
Address: 20.37.141.33

Kalyans-MacBook-Pro:01-ExternalDNS kdaida$

Access Application and Test¶

# Access Application
http://eapp1.kubeoncloud.com
http://eapp1.kubeoncloud.com/app1/index.html

# Note: Replace kubeoncloud.com with your domain name

Step-07: Clean-Up¶

# Delete Application
kubectl delete -f kube-manifests/02-NginxApp1

# Verify External DNS pod to ensure record set got deleted
kubectl logs -f $(kubectl get po | egrep -o 'external-dns[A-Za-z0-9-]+')

# Verify Record set got automatically deleted in DNS Zones
# Template Command
az network dns record-set a list -g <Resource-Group-dnz-zones> -z <yourdomain.com>

# Replace DNS Zones Resource Group and yourdomain
az network dns record-set a list -g dns-zones -z kubeoncloud.com

time="2020-08-24T12:08:52Z" level=info msg="Deleting A record named 'eapp1' for Azure DNS zone 'kubeoncloud.com'."
time="2020-08-24T12:08:53Z" level=info msg="Deleting TXT record named 'eapp1' for Azure DNS zone 'kubeoncloud.com'."
